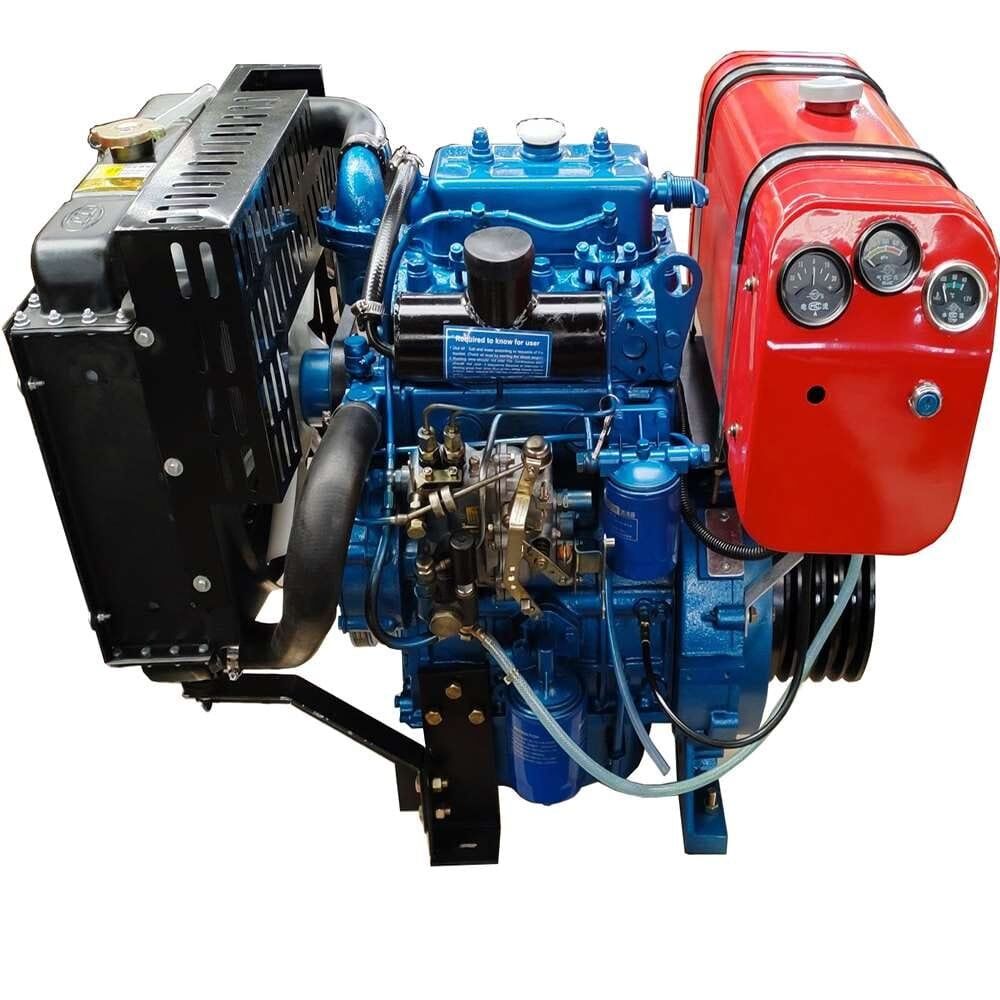

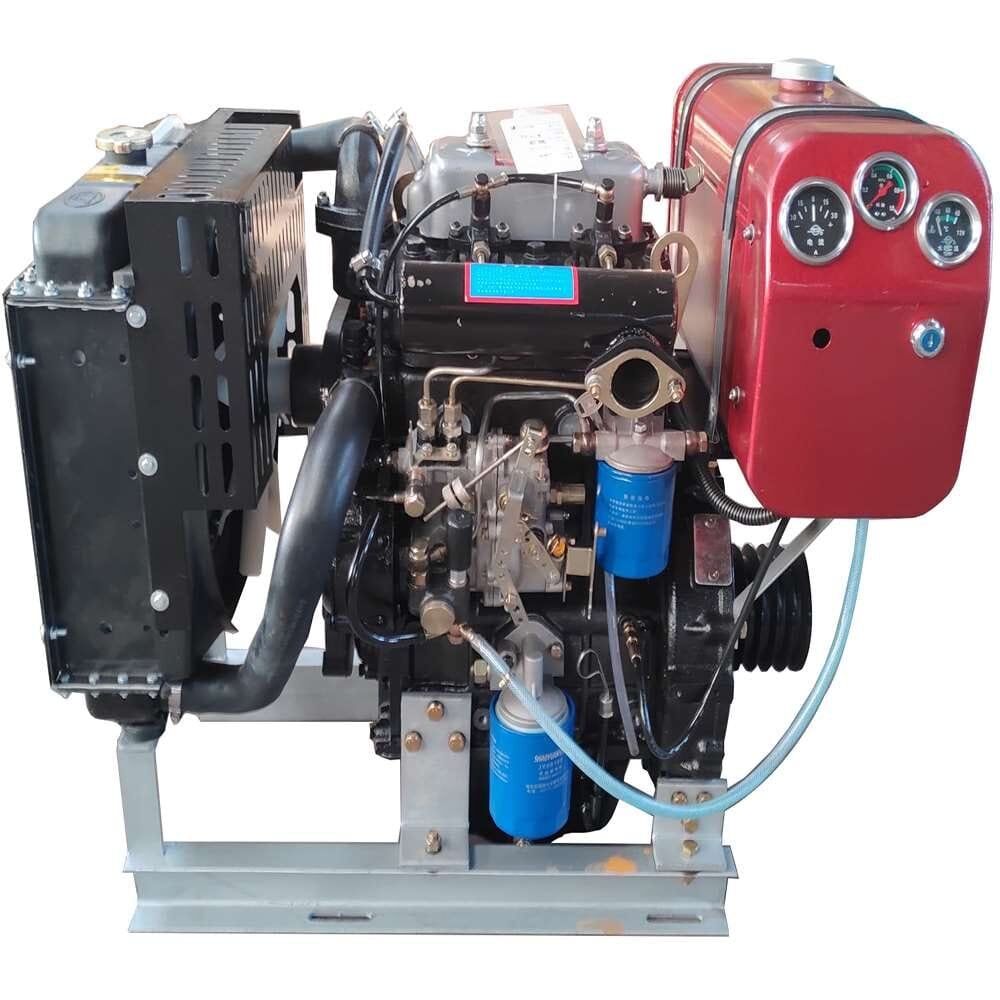

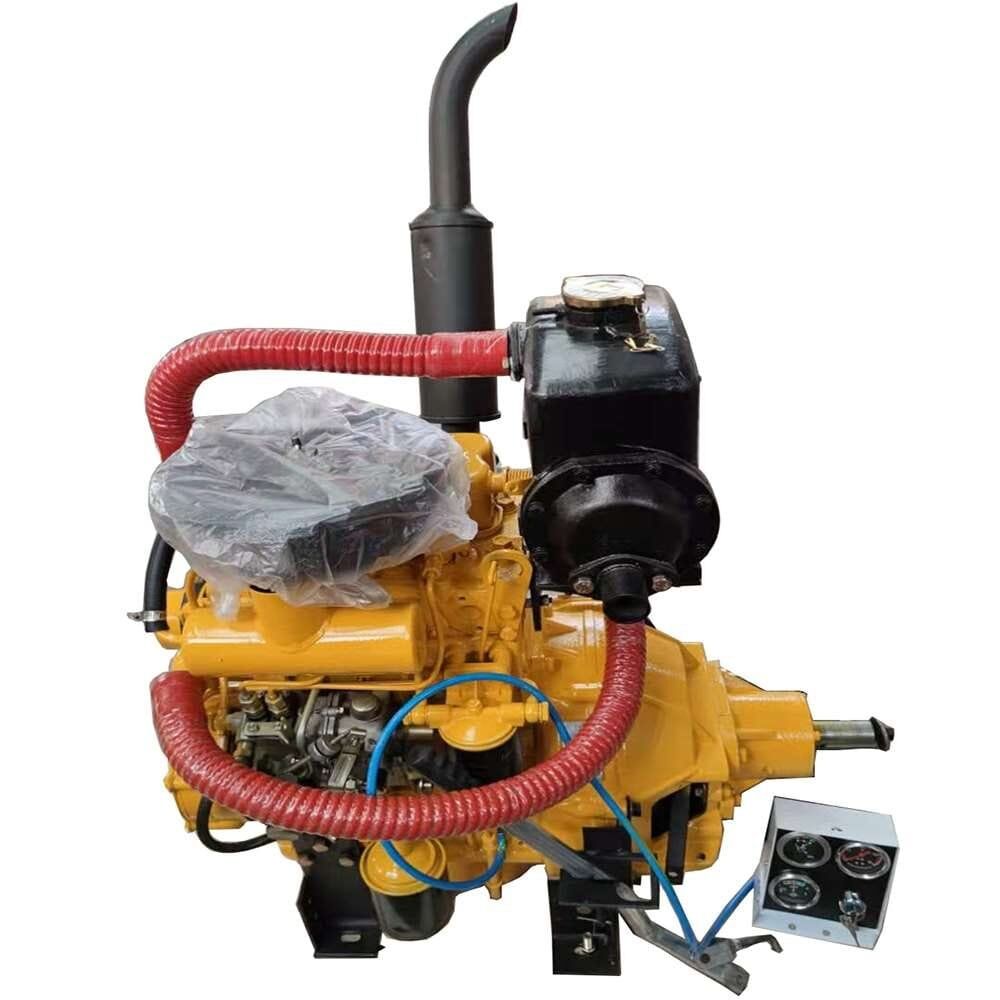

Ricardo Two Cylinder Diesel Engine

General Features:

◆ Engine Model: 295P/2100P/2105P/2110P

◆ Engine Power: 18kw/25hp

◆ Engine Speed: 1500/1800/2000/3000rpm

◆ Engine Optional: Fuel tank, belt pulley/PTO shaft, Automatic controller

◆ Radiator 40℃ max, fans are driven by belt, with safety guard

◆ 12V charge alternator

◆ Dry-type air filter, fuel filter, oil filter

Additional information

Product Details:

ENGINE MODEL 2110P
TYPE IN-LINE, WATER-COOLED, 4-STROKE, DIRECT INJECTION
RATED OUTPUT (kw/hp) 18/25
MAX OUTPUT (kw/hp) 19.8/27.5
ASPIRATION NATURAL
NO OF CYLINDER 2
BORE(mm) X STROKE(mm) 110 X 117
DISPLACEMENT(Liters) 4
COMPRESSION RATIO 17:01
SPEED RATED(r/min) 1500
MAX TORQUE(n·m) 480
FUEL CONSUMPTION(g/kw.h) 240
OIL CONSUMPTION(g/kw.h) ≤1.63
LUB. OIL CAPACITY(L) 12
COOLING CAPACITY(L) 16
STARTING METHOD ELECTRIC STARTING, 12V
COOLING METHOD FORCED WATER-COOLED
LUBRICATION METHOD PRESSURE & SPLASH LUBRICATING
EXHAUST GAS TEMPERATURE (°C) ≤600
NET WEIGHT(kg) 390
