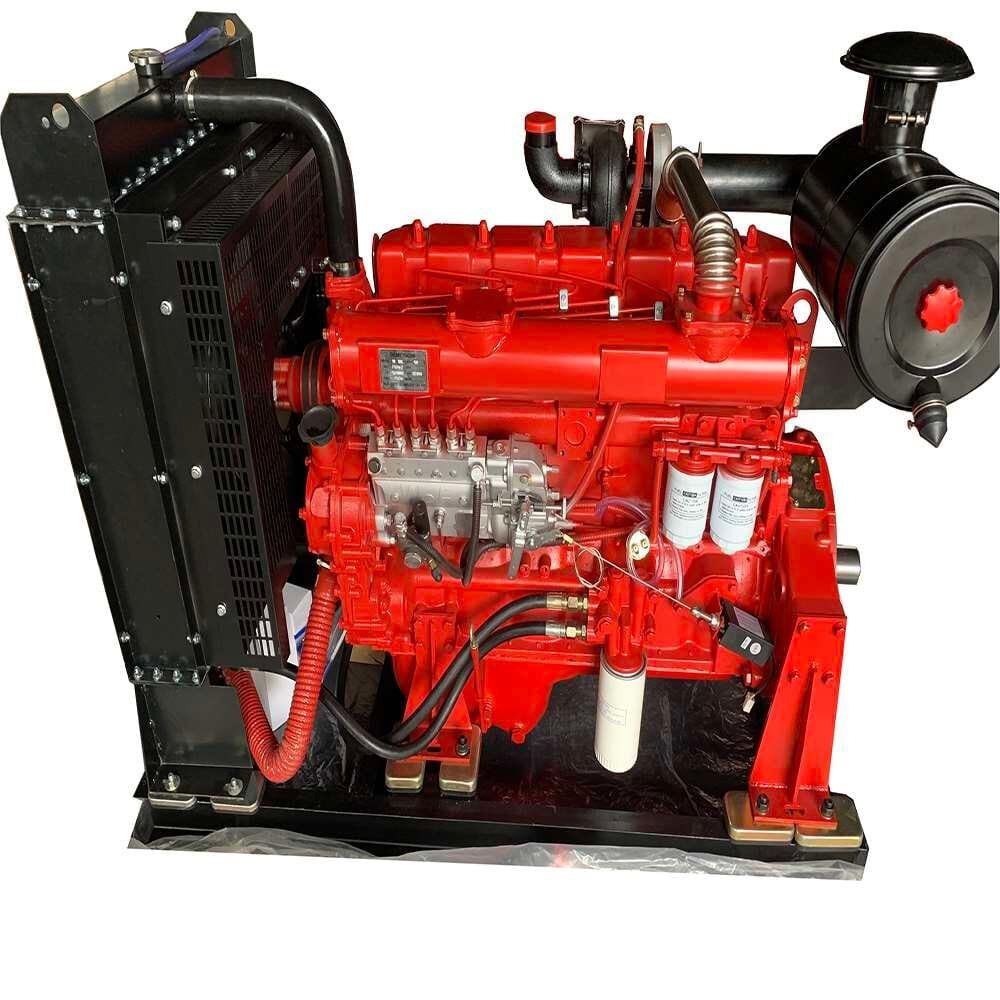

3000rpm Diesel Engine for Fire Pump 6TW-Z 130KW

General Features:

◆ Engine Model: 6TW-Z

◆ Engine Power: 130kw/408hp

◆ Engine Speed: 3000rpm

◆ Engine Optional: Fuel tank, belt pulley/PTO shaft, Automatic controller

◆ Radiator 40℃ max, fans are driven by the belt, with safety guard

◆ 24V charge alternator

◆ Dry-type air filter, fuel filter, oil filter

Additional information

Product Details:

No. Model 6TW-Z
1 Type Four stroke、Water-cold、Inline、Direct injection combustor
2 Cyliner No.- Bore×Stock(mm) 6-105×125
3 Piston Displacement(L) 6.49
4 Compression Ratio 16:1
5 Ignition Sequence 1-5-3-6-2-4
6 Intake Mode Turbocharged
7 Engine Power(KW/r/min) 130/3000
8 Maximum no-load speed(r/min) ≤850
9 Mean effective pressure(kpa) 1035
10 Fuel consumption rate(g/kW·h) ≤224
11 Oil consumption rate(g/kW·h) ≤1.63
12 Air Temperature(℃) ≤600
13 Crankshaft steering Counterclockwise(From the power output side)
14 Cooling mode Forced water cooling
15 Lubrication mode Pressure and spatter composite
16 Start mode Electrical start
17 Weight(kg) 570
